NEW-ERA 강관 홀딩
닝보 PIPEWAY 무역 CO., LTD
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | New Era |
| 인증: | ISO9001,TS16949 |
| 모델 번호: | DIN2391 |
| 최소 주문 수량: | 1 톤 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 번들 패키지, 나무 상자 패키지 |
| 배달 시간: | 45일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 3000 톤 / 달 |
| 제품명: | 정밀 강관 | 배달 조건: | BK, BKW, BKS, GBK, NBK |
|---|---|---|---|
| OD 크기: | 6-156mm | WT 크기: | 1-30mm |
| 기준: | DIN2391 ST52 BK | 애플리케이션: | 기계적 목적, 구조 튜브 |
| 강철 재료: | St35, St45, St52 | 배달 시간: | 45일 |
| 강조하다: | DIN2391 St35 seamless steel tube,bright drawn hard steel tube,precision seamless steel tube |
||

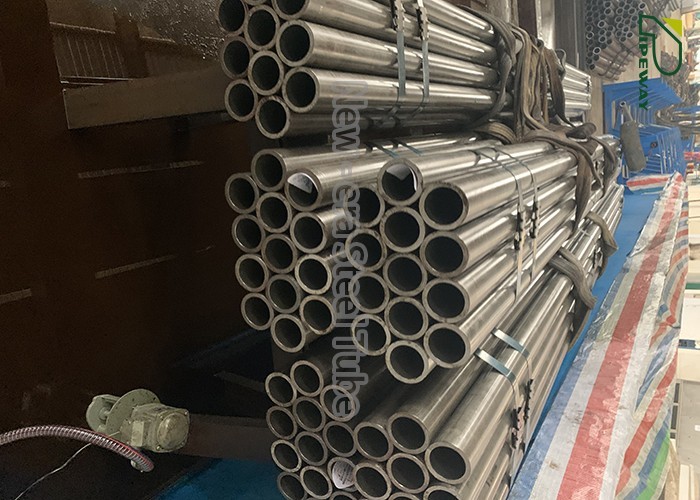

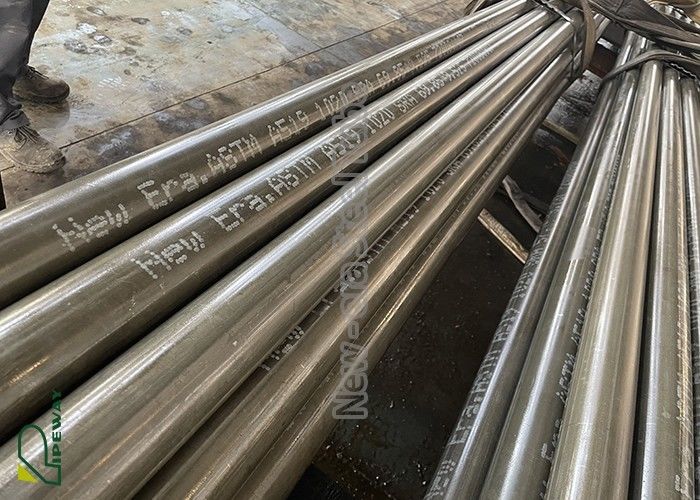

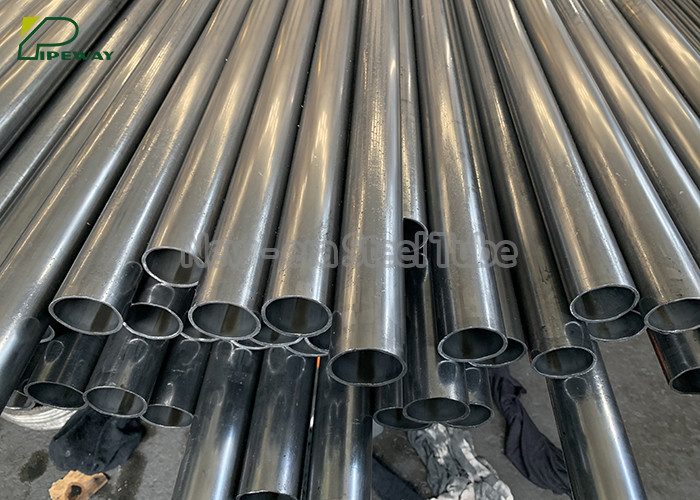

DIN2391 St35 BK Bright Drawn Hard Seamless Steel Tube
Material: ST35, ST45, ST52
Size Range: OD: 6-156mm, WT: 1-30mm, Length: 5.8m/6m, maximal 11.8m
Delivery Condition: BK, BKW, BKS, GBK, NBK
Application: For high precision purpose, auto industry, like manipulator, Shock Absorber, Transmission Shaft, Steering Gear, Car Frame, etc.
Cold drawning on the seamless steel tubes, to reach high accuracy on the OD and WT tolerance
100% Eddy Current Testing.
100% Size Tolerance Checking.
100% Tube surface checking to avoid surface defects.
| Product Name | DIN2391 St35 BK Seamless Carbon Steel Tube Hard Drawn |
| Material | ST35, St45, ST52 |
| Delivery Condition | BK, BKW, BKS, GBK, NBK |
| Standard | DIN2391 |
| Size Range | OD: 6-88mm, WT: 1-15mm |
| Application | High precision purpose, auto parts, oil cylinder, etc |
| Round Billet | Bao Steel, Xingcheng Steel, Huai Steel, Zhongtian Steel |
| Keyword | DIN2391 Steel Tube |
| Certificate | TS16949, ISO 9001 |
| HS code | 7304319000 |
| Delivery Time | 45 days |
| Packing | Bundles or Wooden Boxes |
| Steel Grade | Chemical Composition | |||||
| Symbol | Material Number |
C |
Si |
Mn |
P |
S |
| ST35 | 1.0308 | 0.17 | 0.35 | ≥0.40 | 0.025 | 0.025 |
| ST45 | 1.0408 | 0.21 | 0.35 | ≥0.40 | 0.025 | 0.025 |
| ST52 | 1.0580 | 0.22 | 0.55 | ≤1.60 | 0.025 | 0.025 |
| Steel Grade | BK | BKW | BKS | |||||
| Name | No. |
Rm |
A |
Rm |
A |
Rm |
ReH |
A |
| ST35 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 315 | 14 |
| ST45 | 1.0408 | 580 | 5 | 520 | 8 | 520 | 375 | 12 |
| ST52 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 |
| Steel Grade | GBK | NBK | ||||
| Name | No. |
Rm |
A |
Rm |
ReH |
A |
| ST35 | 1.0308 | 315 | 25 | 340--470 | 235 | 25 |
| ST45 | 1.0408 | 390 | 21 | 440--570 | 255 | 21 |
| ST52 | 1.0580 | 450 | 22 | 490--630 | 355 | 22 |
